XC9536-15PCG44I
Features
• 5 ns pin-to-pin logic delays on all pins
• fCNT to 100 MHz
• 36 macrocells with 800 usable gates
• Up to 34 user I/O pins
• 5V in-system programmable - Endurance of 10,000 program/erase cycles - Program/erase over full commercial voltage and temperature range
• Enhanced pin-locking architecture
• Flexible 36V18 Function Block
- 90 product terms drive any or all of 18 macrocells within Function Block
- Global and product term clocks, output enables, set and reset signals
• Extensive IEEE Std 1149.1 boundary-scan (JTAG) support
• Programmable power reduction mode in each macrocell
• Slew rate control on individual outputs
• User programmable ground pin capability
• Extended pattern security features for design protection
• High-drive 24 mA outputs • 3.3V or 5V I/O capability
• Advanced CMOS 5V FastFLASH™ technology
• Supports parallel programming of more than one XC9500 concurrently
• Available in 44-pin PLCC, 44-pin VQFP, 48-pin CSP packages
Description

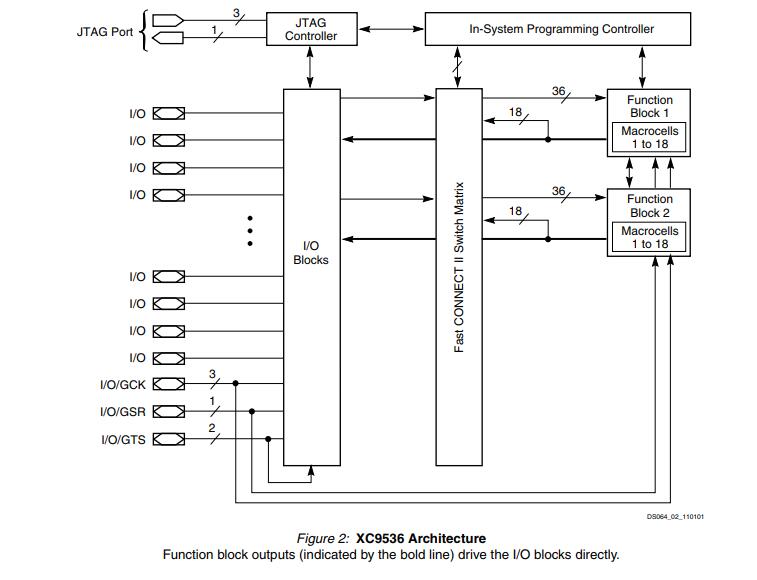

The XC9536 is a high-performance CPLD providing advanced in-system programming and test capabilities for general purpose logic integration. It is comprised of eight 36V18 Function Blocks, providing 800 usable gates with propagation delays of 5 ns. See Figure 2 for the architecture overview.
Power Management

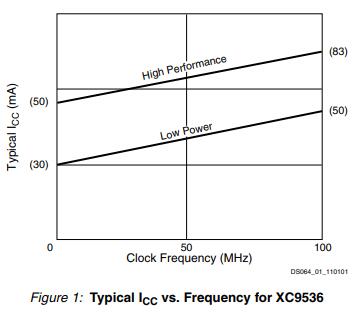

Power dissipation can be reduced in the XC9536 by configuring macrocells to standard or low-power modes of operation. Unused macrocells are turned off to minimize power dissipation. Operating current for each design can be approximated for specific operating conditions using the following equation:
ICC (mA) = MCHP (1.7) + MCLP (0.9) + MC (0.006 mA/MHz) f Where:
MCHP = Macrocells in high-performance mode
MCLP = Macrocells in low-power mode
MC = Total number of macrocells used
f = Clock frequency (MHz)
